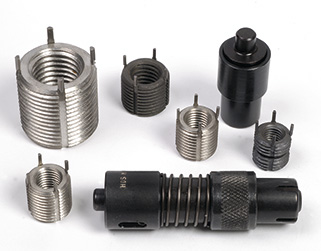

“CLAV-SERT” thread inserts
An easily fitted insert.
The CLAV-SERT thread inserts consist of rigid one-piece bushes. |
Resistant to pulling.
The fitting of the insert could not be simpler. It is enough to drill a hole, tap it to the required dimensions, screw in the insert and lock it in position by simultaneously pushing the 2 or 4 keys which will hold the insert against the walls and prevent it from rotating. |
![]() |
![]() |
Material | Surface coating | Dimension |
Stainless steel AISI 303 |
Passivated |
Metric pitch M4 to M24 |
Carbon steel | Phosphate treated |
UNC-UNF 8-32 to 1” |
